EVO II Enterprise

Optimize your workflow with our toughest EVO II Enterprise yet, bulked up with new accessories and camera features to meet the demands of professionals in every industry from firefighting to construction.

Work Like Never Before

Optimize your workflow with our toughest EVO II Enterprise yet, bulked up with new accessories and camera features to meet the demands of professionals in every industry from firefighting to construction.

With a foldable design that can be deployed in seconds and easy-to-use controls that can be operated with a single hand, the EVO II RTK Enterprise provides a surefire way to increase efficiency without increasing stress.

High-resolution Imaging

20MP 1″ CMOS Sensor

3x Optical 16x Digital Zoom Capability

Adjustable Aperture Range of f2.8 to f11

EVO II Enterprise

Technical Specifications

Aircraft

Gimbal

Sensing System

EVO II Pro Enterprise Camera

• EVO II Dual 640T Enterprise Thermal Camera

  Sensor	Vanadium oxide uncooled infrared focal plane detector
  Viewing Angle	H33°V26°
  Sensor resolution	640×512
  Pixel Pitch	12μm
  Focal Length	13mm
  Wavelength range	8～14μm
  Accurate temperature measurement distance	2-20 meters
  Temperature measurement accuracy	±3℃ or ±3% of reading (whichever is greater) @ambient temperature -20℃~60℃
  Temperature range	High gain mode: -20° to +150°C Low gain mode: 0° to +550°C
  Zoom	1-16x
  Photo shooting mode	Single shooting, continuous shooting,time-lapse shooting
  Camera resolution	Infrared mode: 640*512 Picture in Picture: 1920*1080, 1280*720
  Video Resolution	640*512 30fps
  Video format	MOV / MP4 (support H.264/H.265)

• EVO II Dual 640T Enterprise Visual Camera

  Sensor	1/2 inch CMOS; 48M effective pixels
  FOV	FOV：79°
  Aperture	f/1.8
  Focus range	0.5m to ∞
  Equivalent Focal Length	25.6mm
  ISO Range	Video: 100-6400 (auto) Photo: 100-3200 (auto)
  Zoom	1-16x (up to 4x lossless zoom)
  Still Photography Modes	Single Shot Burst shooing: 3/5 frames Automatic Exposure Bracketing (AEB)： 3/5 bracketed frames at 0.7 EV Bias Timelapse： JPG：2s/5s/7s/10s/20s/30s/60s DNG：5s/7s/10s/20s/30s/60s HyperLight：support (under 4K JPEG format） Long Exposure: Max 8s HDR imaging: (under 4K JPEG)
  Still Photography Resolution	8000*6000 (4:3) 7680*4320 (16:9) 4000*3000 (4:3) 3840*2160 (16:9)
  Video Format	MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)
  Video Resolution	8K 7680*4320 p25/p24 6K 5760*3240 p30/p25/p24 4K 3840*2160 p60/p50/p48/p30/p25/p24 2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24 1080P 1920*1080 p120/p60/p50/p48/p30/p25/p24
  Max Bitrate	120Mbps

• Remote Controller

  *Operating Frequency	902-928 MHz; 2.400-2.4835 GHz; 5.725-5.850 GHz
  Max Transmission Distance(unobstructed, free of interference)	FCC: 13km CE: 7km
  Transmitter Power (EIRP)	902-928 MHz FCC:≤30dBm 2.400-2.4835 GHz FCC:≤30dBm CE：≤20dBm 5.725-5.850 GHz CE：≤14dBm
  Internal Storage	128GB
  Video Output Port	HDMI
  Built-in Battery	Name: Intelligent Li-ion battery Capacity：5800mAh Voltage：11.55V Battery Type：Li-ion Battery Energy：67 Wh Charging time：120 min
  Battery Life	3hr (Max. intensity) 4.5hr (50% intensity)
  Operating Temperature	-20℃ – 40℃
  RC Size	303×190×87mm(Ant. folded) 303 x 273 x 87 mm (Ant. unfolded)
  Weight	1150g (Without protective case) 1250g (With protective case)
  Satellite Positioning Module	GPS + GLONASS + Galileo

  Note: *The operating frequency band varies according to different countries and areas.

• Accessories

  Strobe	Power：Avg. 1.6W Controllable Range：5000m Light intensity：Min 50cd；Max 486cd；Avg. 290cd
  Loudspeaker	Power：Max 18W Decibel：120dB @ 1m；88dB @ 60m；70dB @ 110m； Max Bitrate：36kbps Adjustable Angle Range：0°~45°
  Spotlight	Power：Max 35W Controllable Range：30m Adjustable Angle Range：0°~90° Illuminance：FOV14°, Max：11lux @ 30m Straight
  RTK Module	Dimensions：55.5*72.5*57 mm Weight：59.5 g Connections：Floating Connectors Power：~ 3W RTK Positioning Precision： 1.5 cm + 1 ppm（(Vertical） 1 cm + 1 ppm（Horizontal）

• Battery

  Capacity	7100 mAh
  Voltage	11.55 V
  Battery Type	LiPo 3S
  Energy	82Wh
  Net Weight	365g
  Charging Temperature	5~45℃
  Storage Temperature & Humidity	-10~30℃，65±20%RH
  Recommended Storage Temperature	22~28℃
  Max Charging Power	93 W
  Charging Time	90 mins

• Charger

  Input	100-240 V, 50/60 Hz, 1.5A
  Output	13.2 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A
  Voltage	13.2 ± 0.1 V
  Rated Power	66 W

  Create cost-effective 3D maps of an area using high-resolution images captured during steady, consistent flight.

  Create cost-effective 3D maps of an area using high-resolution images captured during steady, consistent flight.

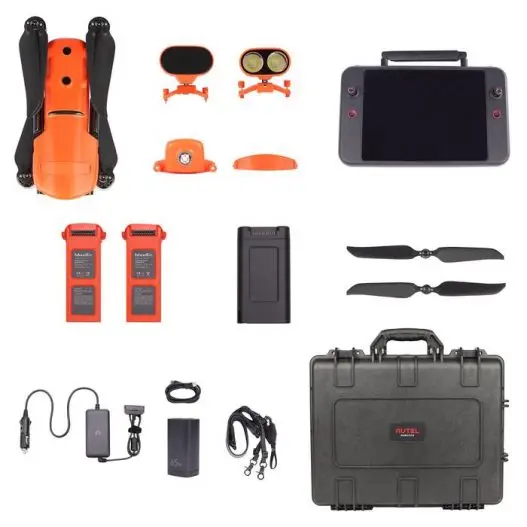

  Accessories



  Spotlight



  Strobe

  Indicate the location of the aircraft at night to avoid air traffic accidents.



  RTK Module（Optional）



  Loudspeaker

  ADS-B Receiver

  Detects the presence of any manned aircraft nearby EVO II RTK Enterprise emitting an ADS-B signal, giving the operator enough time to take evasive measures to avoid mid-air collisions.



  360° Obstacle Avoidance

  Easily maneuver around obstacles, plan paths through complex terrain, or build three-dimensional maps using the 19 sets of sensors covering the airframe, EVO II RTK Enterprise is the best drone



  Predictive Target Tracking

  Lock on to an object moving at high speed and predict its trajectory with ease, or use the eye in the sky to identify up to 64 objects at once, EVO II RTK Enterprise does the perfect job



  Reliable Data Encryption

  Protect sensitive information through encrypted internal and external storage, allowing users to work with confidence.



  Superior Flight Performance

  The EVO II RTK Enterprise’s flight performance has been fully optimized thanks to its new power system and carbon fiber structural design. Equipped with an industry-leading dual-frequency image transmission system, the unit also provides stronger anti-interference capabilities and stable transmission of high-definition images up to 1080p.
