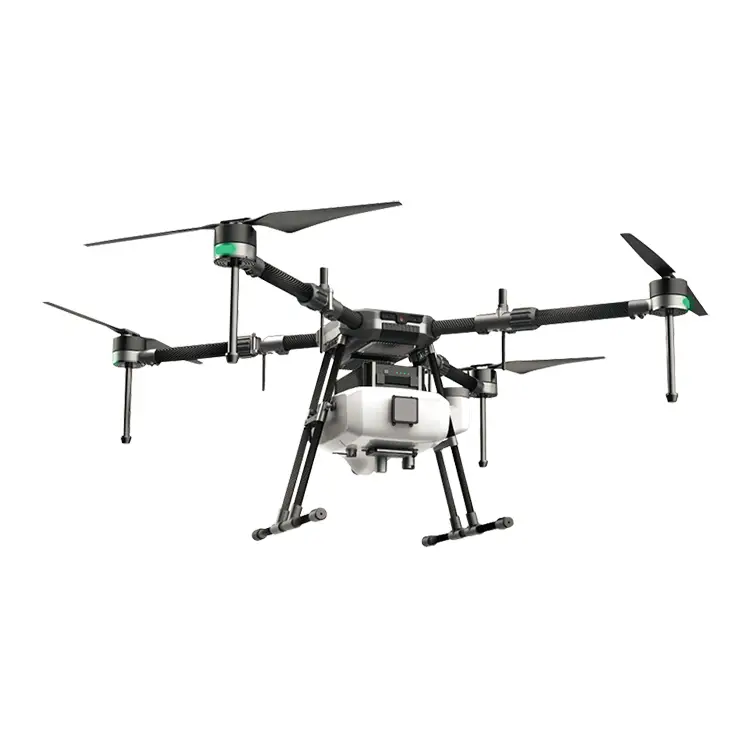

Fly Dragon FDXD-4R-10L Agricultural Spraying Drone
(0
reviews)
Fly DragonShare
Agriculture spraying drones can replace the traditional pesticide sprayer. With a speed 40 times more than the traditional sprayer, it saves 90% water and 30% – 40% pesticide. Small droplet diameter makes the pesticide well-distributed and improves efficiency. At the same time, it minimises contact of pesticides with humans and reduces pesticide residue in crops.
4 Rotors, 10kgs Agriculture Spraying Drone
The Fly Dragon FDXD-4R-10L Agricultural Spraying Drone is a highly reliable and efficient agricultural drone used in numerous countries today. With a 10-litre capacity, this drone is used extensively for pesticide spraying and eliminates the numerous risks associated with pesticide spraying done manually.
| Specification | Parameter |
| Package | |
| Package Size | Package Size 770*770*750mm |
| Net Weight | 13.0kg |
| Gross Weight | 21.0kg |
| Rack | |
| Symmetric Motor Wheel Base | 1495mm |
| Length of Single Arm | 643mm（Front）；623mm（Back） |
| Overall Dimension | 1152*1152*630（Unfold State）
666.4*666.4*630（Fold State） |
| Motor | |
| Motor Type | P80 |
| Motor Size | 80x20mm |
| KV Value | 100rpm/V |
| Max Tension | 13.5KG |
| Max Power | 2800W |
| Weight | 680g |
| Motor Electronic Modulation | |
| Rated Operational Current | 40A |
| Operating Voltage | 50.4V（12S LiPo） |
| Highest Sginal Frequency | 500Hz |
| Driving PWM Frequency | 20KHz |
| Highest Control Frequency of Main Wire | 2KHz |
| Collapsible Propeller (30R) | |
| Texture | Polymer + Carbon Fiber |
| Diameter | 30 inches |
| Screw Pitch | 10.9 inches |
| Ordinay Tension / Rotate Speed | 4~8kg/2000~2800RPM |
| Weight | 184g |
| Spray System | |
| Operating Box | |
| Volume | 10L |
| Standard Operation Load | 10kg |
| Volume of Storage Groove | 0.37L |
| Battery Installation Position Size | 242*180*135mm |
| Shower Nozzle | |
| Suggested Type | XR11001VS |
| Number | 4个 |
| Max Spray Volume | 2000ml/min（Applying XR110001VS shower nozzle, taking water as example） |
| Spray Swath | 3.0~5.5 meters（depending on different objects） |
| Atomization Grain Size | XR11001VS：130 – 250 μm（being related to the spraying preparation type, spraying flow and so forth） |
| Radar System | |
| Stimulation Radar | |
| Modulation System | FMCW |
| Frequency | 24GHz |
| Protection Level | IP65 |
| Height Scope | 1~10m |
| Range Accuracy | 0.02m |
| Obstacle Avoidance Radar | |
| Perception Scope | 2~12m |
| Application Condition | The relative altitude of the HAV is 1.5m and the speed is less than 6 m/s. |
| Security Distance | 4m |
| Obstacle Avoidance Direction | Realizing the front and back obstacle avoidance in line with the flying direction |
| Protection Level | IP65 |
| FPV Camera | |
| Visual Angle（FOV） | 120° |
| Resolution Ratio | 720P |
| LED Brightness | 1000lux |
| LED power | 8W |
| Flight Data | |
| Total Weight（not including battery） | 11.6kg |
| Max effective flying weight | 27.0kg |
| Hovering Precision （GNSS signal good） |
Horizontal± 1.0m，Vertical ± 0.5 m |
| Horizontal ± 10 cm，Vertical± 10 cm（Launching RTK） | |
| Vertical ± 0.1m（Launching radar） | |
| Hovering Time* | ＞10min（Full load）
＞20min（No load） |
| *The hovering time is tested when HAV is near to sea level, the wind speed is less than 3 m/s and the environment temperature is 25℃. | |
| Max Flight Speed | 10m/s |
| Max Flying Altitude | 2000m |
| Recommended Operating Environment Temperature | 0~40℃ |
| Remote Control | |
| Type | T12-LC-TG |
| Operating Frequency | 2.400-2.4833 GHz |
| Effective Distance of Signal (No Disturbance and No Resistance) | 10km |
| Battery Voltage | 3.7V（Li-On rechargeable） |
| Battery Capacity | 4000 mAh |
| Weight | 560g |
| Size | 225x123x35mm |
| Support Language | Simplified Chinese / English |
| RTK System | |
| Usage Frequent Point | GPS：L1/L2；GLONASS：L1/L2；BDS：B1/B2 |
| Positioning Accuracy | Single Point：1.5m |
| Floating Solution：0.4m | |
| Fixed Solution: Horizontal 1cm±1ppm/ Vertical 2cm±1ppm | |
| Orientation Precision | 0.4° |
| Speed Test Precision | 0.03m/s |
| Communication Frequency Band | 840MHz-845MHz |
| Base Station | |
| Support Mode | Base State Mode / Tapper Mode |
| Duration | 8h |
| Signal Coverage Scope (No Disturbance, No Resistance) | 4km |
| Protection Level | IP67 |
| Size | 136mm x 89mm |
| Weight | 0.7kg |
| Charger | |
| Input | 100V-240V~11A 50/60Hz |
| Output Power | 800Wx2 |
| Channel Number | Binary Channels |
| Support Language | Simplified Chinese / English |
| Size | 312 x 228 x 145mm |
| Weight | 3.05KG |
| Package Size | 355 x 260 x 190mm |
| Battery（TG-14000S） | |
| Voltage | 50.4V |
| Discharge Rate | 15C |
| Protection Level | IP64 |
| Battery Life Span | 200 circulations |
| Capacity | 14000mAh |
| Weight | 4.15kg |
| Package Size | 295x275mmx320mm（Package includes 2 pieces batteries） |
| Battery（TG-17000S） | |
| Voltage | 50.4V |
| Discharge Rate | 15C |
| Protection Level | IP64 |
| Battery Life Span | 200 circulations |
| Capacity | 14000mAh |
| Weight | 5.15kg |
| Package Size | 295mmx275mmx320mm（Package includes 2 pieces batteries） |
