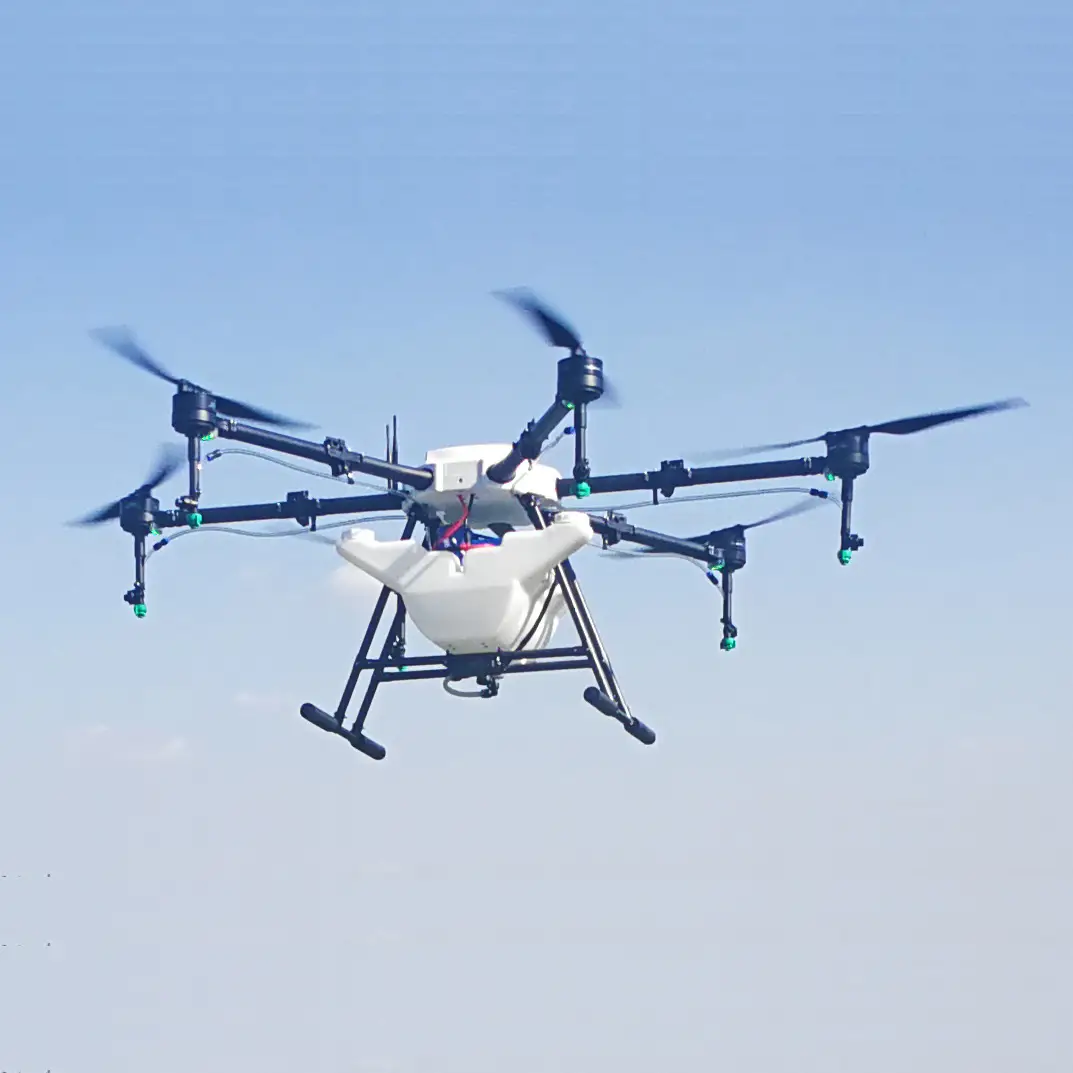

Fly Dragon FDXD-6R-16L Agricultural Spraying Drone

The Fly Dragon FDXD-6R-16L agricultural spraying drone uses the new T1 – A Flight Controller, with a Radar Sensing System that provides additional reliability during flight. T1 – A is a mature flight controller for agricultural drones. It provides rich and practical functions that can meet multiple requirements of current agricultural drones. By integrating high precision sensor, the application of advanced industrial precision calibration algorithm as well as reasonable intelligent operation mode, a more efficient, accurate and convenient way of plant protection work can be now done with the Fly Dragon agricultural spraying drone.

6 Rotors, 16kgs Agriculture Spraying Drone

Fly Dragon FDXD-6R-16L Agricultural Spraying Drone

An agriculture spraying drone can replace the traditional pesticide sprayer. With a speed 40 times more than the traditional sprayer, it saves 90% water and 30% – 40% pesticide. Small droplet diameter makes the pesticide well-distributed and improves efficiency. At the same time, it minimises contact of pesticides with humans and reduces pesticide residue in crops. Spraying pesticides with agricultural drones also reduces man hours involved and protects agricultural personnel from harm.

AIRCRAFT FRAME of Agricultural Spraying Drone

Dimensions

1720mm x1720mm x610mm（arm unfolded, without propellers） 925mmm x925mmm x610mm（arm folded）

SPRAY SYSTEM

LIQUID TANK

Volume	16 L
Standard Operating Payload	16 kg

NOZZLE

FLIGHT PARAMETERS

Model	Germany ceramic nozzle（Max 1L/min adjustable）
Quantity	6

Total Weight	15.5 kg (without battery)
Standard Takeoff Weight	37.5 kg
Max Takeoff Weight	37.5 kg (at sea level)
Max Thrust-Weight Ratio	1.41 (with 37.5 kg takeoff weight)
Power Battery	Battery (6S 22000mAh 25C 6S1P )
Max Power Consumption	15774 W
Hovering Time*	21 min（@22000 mAh & 16 kg takeoff weight） 10 min（@22000 mAh & 37.5 kg takeoff weight） *Hovering time acquired at sea level, with wind speeds lower than 3m/s.
Max Operating Speed	8 m/s
Max Flying Speed	10 m/s
Max Service Ceiling Above Sea Level	2000 m
Recommended Operating Temperature	0 ℃ to 40 ℃

REMOTE CONTROLLER

Model	XT32
Operating Frequency	2.400 GHz to 2.483 GHz
Max Transmission Range	3 km (unobstructed, free of interference)
EIRP	≤20 dBm
Built-in Battery	3000 mAh，3.7V
Operating Temperature Range	-10 ℃ to 40 ℃
Storage Temperature Range	Less than 3 months: -20 to 45℃ More than 3 months: 22 to 28℃
Charge Temperature Range	5 ℃ to 40 ℃

PROPULSION SYSTEM

PROPULSION SYSTEM

Stator Size	81×20 mm
KV	100 rpm/V
Max Thrust	15.3 kg/Axis (48V, Sea Level)
Weight	180g
