Improved Transmission System

The all-new OcuSync Enterprise enables transmission up to 15 km away and supports triple-channel 1080p video. Real-time auto-switching between 2.4 GHz and 5.8 GHz enables more reliable flight near high-interference environments, while AES-256 encryption offers secure data transmission.

• 15km Transmission Range
• 1080p Triple-channel Video
• 2.4 /5.8GHz Real-time Auto-switching

Enhanced Flight Performance

The refined airframe and propulsion system design gives you a more efficient and stable flight, even in harsh conditions.

• 55min Max Flight Time
• 7m/s Max Descend Speed
• 7000m Service Ceiling
• 15m/s Wind Resistance
• 23m/s Max Speed

Multiple Payload Configurations

Configure your DJI M300 RTK to fit your mission needs. Mount up to 3 payloads simultaneously, with a maximum payload capacity of 2.7 kg.

Advanced Intelligence

Live Mission Recording

Record mission actions such as aircraft movement, gimbal orientation, photo shooting, and zoom level to create sample mission files for future automated inspections.

AI Spot-Check

Automate routine inspections and capture consistent results every time. Onboard AI recognizes the subject of interest and identifies it in subsequent automated missions to ensure consistent framing.

Waypoints 2.0

Create up to 65,535 waypoints and set multiple actions for one or more payloads, including third party ones, at each waypoint. Flightpath planning is also optimized to maximize flexibility and efficiency for your missions.

Smart Pin & Track

PinPoint

Mark an object in camera or map view with a quick tap, and advanced sensor fusion algorithms will immediately calculate its coordinates, which are projected to all camera views as an AR icon. The location of the subject is automatically shared with another remote controller, or to online platforms such as DJI FlightHub.

Smart Track

Identify and follow moving subjects like people, vehicles, and boats with the Smart Track function, where auto-zoom is applied for steady tracking and viewing. The subject’s dynamic location is continuously acquired and shared to another remote controller or to DJI FlightHub.

Aviation-Grade Situational Awareness

The M300 RTK adopts a new Primary Flight Display (PFD) that integrates flight, navigation, and obstacle information to empower the pilot with exceptional situational awareness.

Flight Information

Flight information such as aircraft attitude, altitude, and velocity, as well as wind speed and wind direction, are all intuitively presented.

Navigation Display

Pilots can also view the live status of the aircraft’s heading, trajectory, PinPoint information, and home point projection, in a more efficient way. Visualize all nearby obstacles at once with the new obstacle map, so you can be fully informed.

Advanced Dual Control

Either operator can now obtain control of the aircraft or payload with a single tap. This creates new possibilities for mission strategies as well as higher flexibility during operations.

Safety and Reliability

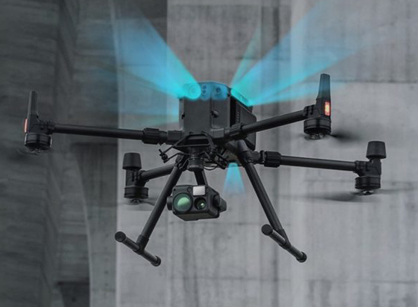

A Powerful Vision System You Can Rely On

To enhance in-flight safety and aircraft stability, dual-vision and ToF sensors appear on all six sides of the aircraft, offering a maximum detection range of up to 40 m, with options to customize the aircraft’s sensing behavior via the DJI Pilot App. Even in complex operating environments, this 6 Directional Sensing and Positioning system helps keep the aircraft and the mission safe.

Professional Maintenance for Your Drone Fleet

The new integrated Health Management System displays the current status of all systems, notification logs, and a preliminary troubleshooting guide. Also in the system are the aircraft’s flight logs, duration, and mileage throughout its entire lifecycle, and tips on aircraft care and maintenance.

Redundancy Systems for Safer Flights

The DJI M300 RTK’s built-in advanced redundancy systems help keep your critical missions going even in unexpected scenarios.

More Adaptable Than Ever Before

• IP45
• Self-Heating Battery
• -20°C to 50°C
• Anti-Collision Beacon
• AirSense ADS-B Receiver

Compatible Payloads

Zenmuse H20

Hybrid sensor solution with LRF, zoom and wide camera

Zenmuse H20T

Hybrid sensor solution with LRF, zoom, wide and thermal camera

Zenmuse XT2

Dual-sensor camera with a 4K visual sensor and thermal imaging with <50 mK sensitivity

Zenmuse Z30

30× optical zoom camera ideal for detailed inspections

Third-Party Payloads

For specialized missions and tasks

Purpose-built Applications

DJI Pilot

DJI Pilot is developed specifically for enterprise users to unleash the power of their DJI drones. With development made specifically for the M300 RTK, DJI Pilot optimizes your flight capability for peak performance.

DJI FlightHub

DJI FlightHub is a one-stop solution for managing your drone operations, supporting large organizations to effectively scale their aerial operations. Compatible with the M300 RTK, you can integrate FlightHub directly into your existing fleet of DJI drones and leverage its aerial intel across your organization.

Applications

• Firefighting:Fight fires and save lives without endangering personnel.
• Search & Rescue:Act quickly to locate missing people and better plan rescue missions.
• Law Enforcement:Quickly assess a situation and plan accordingly while improving officer and bystander safety.
• Powerline Inspection:Easily visualize extensive power line networks in remote areas.
• Oil & Gas:Conduct inspections of pipelines, well sites, and more while keeping workers away from risky areas.
